GENEL BİLGİ
Product ID:3GBA132250-BSD
ABB Type Designation:M2BAX 132SME 4
Catalog Description:M2BAX 132SME 4
EK BİLGİLER
ABB Type Designation:M2BAX 132SME 4
Altitude:1000 m
Ambient Temperature:40 °C
Bearing:6208-2Z/C3
Bearing NDE:6208-2Z/C3
Country of Origin:Poland (PL)
Customs Tariff Number:85015220
Direction of Rotation:Both sides Gross Weight:82 kg
IC Class:IC411
IE Class Data (50 Hz):IE Class IE3
IE Class Data (60 Hz):IE Class IE3
Full Load (100%) 91.7 %
Partial Load (75%) 91.7 %
Partial Load (50%) 90.8 %
IM Class:IMB5 IM3001
IP Class:IP55
Insulation Class:ICLF
Invoice Description:M2BAX 132SME 4
Made To Order:No
Minimum Order Quantity:1 piece
Number of Poles (High):4
Order Multiple:1 piece
Package Level 1 Units:0 carton

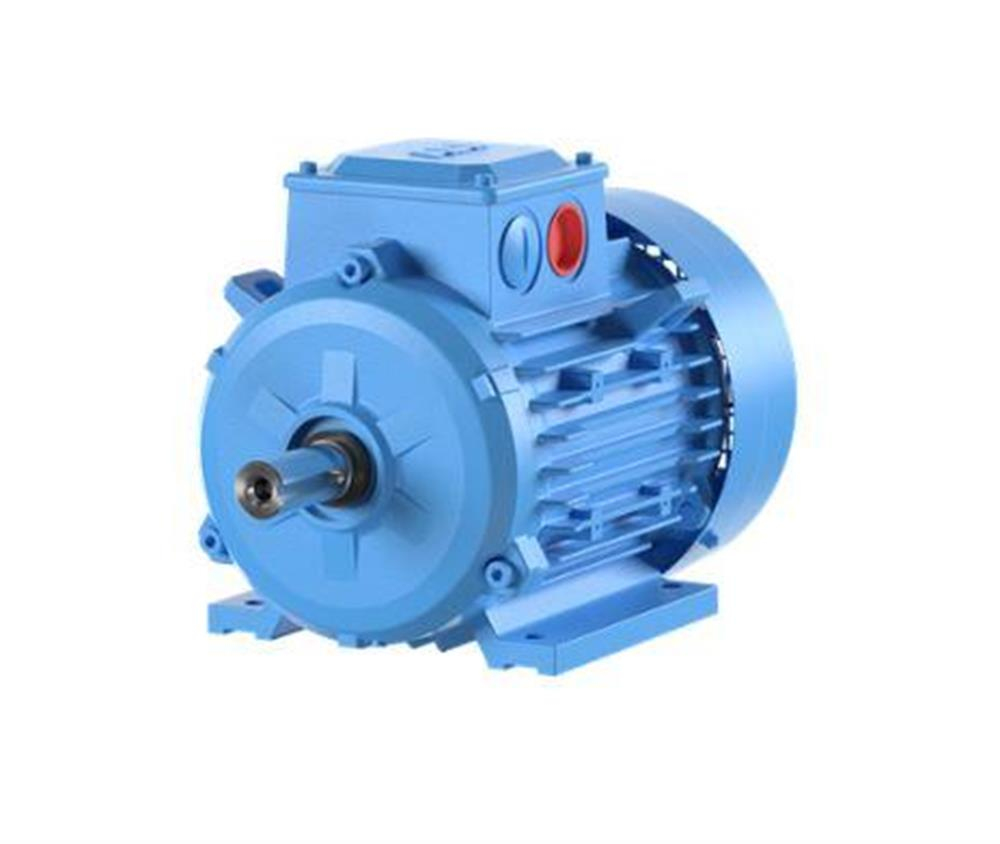

Product Name:3-Phase squirrel cage motor
Product Net Weight:77 kg
Product Type:EBA3__M2BAX_CI
Quote Only:No
Selling Unit of Measure:piece
Standards:IEC_60034-1
Stocked At (Warehouses):Central Stock Europe
Temperature Class Default:--
Terminator Box Location:D-End top
Two Speed Motor:No
Type of Duty:S1
Voltage Code:S
WEEE Category:5. Small Equipment (No External Dimension More Than 50 cm)
Electrical Data:
| Conn | Temp Class | Freq | Voltage | Power | Speed | Current | Power Factor | Efficiency | Torque | IS/IN |
|---|---|---|---|---|---|---|---|---|---|---|
| Y | -- | 50 Hz | 400 V | 7.50 kW | 1465 r/min | 15.50 A | 0.780 | 90.40 % | 48.96 N·m | 7.40 |
| D | -- | 50 Hz | 230 V | 7.50 kW | 1465 r/min | 26.80 A | 0.780 | 90.40 % | 48.96 N·m | 7.40 |
| Y | -- | 50 Hz | 380 V | 7.50 kW | 1459 r/min | 15.80 A | 0.810 | 90.40 % | 49.13 N·m | 6.90 |
| D | -- | 50 Hz | 220 V | 7.50 kW | 1459 r/min | 27.10 A | 0.810 | 90.40 % | 49.13 N·m | 6.90 |
| Y | -- | 60 Hz | 440 V | 7.50 kW | 1767 r/min | 13.80 A | 0.780 | 91.70 % | 40.53 N·m | 7.50 |
| Y | -- | 60 Hz | 460 V | 7.50 kW | 1770 r/min | 13.50 A | 0.760 | 91.70 % | 40.46 N·m | 8.00 |
